PP CENTRIFUGAL PUMP.png

NON-METALLIC PUMPS

COMPACT, STANDARD, HEAVY DUTY SERIES

CHEMICA PUMPS  are known as the manufacturers of PP PUMPS, PVDF PUMPS, PTFE PUMPS, PFA PUMPS, UHMWPE PUMPS

COMPACT SERIES


Compact Series centrifugal pumps in Polypropylene construction, extensively used for circulation of chemicals in metal finishing industries.

CAPACITY [Q]       = upto 28m3/hr
HEAD [H]               = upto 28 m
TEMPRATURE      = -20 OC to 80 OC
MOTOR RATING  = upto 3.3 Kw

STANDARD SERIES

STANDARD SERIES PP PUMP.bmp

Standard Series Pumps are best suited for pumping acids & alkalies. Typical appications include chemical & pharmaceutical industries, chlor alkali plants, steel plants, CPW Plants, waste water treatment plants.

CAPACITY [Q]       = upto 50m3/hr
HEAD [H]               = upto 50 m
TEMPRATURE      = -20 C to 100 C
MOTOR RATING  = upto 15 Kw

HEAVY DUTY SERIES


Heavy Duty Series Pumps in Polypropylene Construction, ideal choice for pumping large volumes of corrosive media.

CAPACITY [Q]       = upto 290m3/hr
HEAD [H]               = upto 62 m
TEMPRATURE      = -20 C to 100 C
MOTOR RATING  = upto 30 Kw

NON-METALLIC PUMPS

PVDF, VERTICAL GLAND-LESS / SEAL-LESS, SELF-PRIMING SERIES


PVDF SERIES

Series built to handle highly corrosive and hazardous fluids such as acids, alkalies, solvents with or without solids.

CAPACITY [Q]       = upto 270 m3/hr
HEAD [H]               = upto 90 m
TEMPRATURE      = -20 C to 130 C
MOTOR RATING   = upto 60 Kw


VERTICAL GLAND-LESS / SEAL-LESS PUMP

Vertical series is designed for maximum life & minimum maintenance. Seal Less / Gland Less Pumps, hence can run dry indefinitely.

CAPACITY [Q]       = upto 35 m3/hr
HEAD [H]               = upto 35 m
TEMPRATURE      = -20 C to 100 C
MOTOR RATING  = upto 3.3 Kw


SELF-PRIMING PUMPS

Self Priming series in Polypropylene construction is designed for pumping effluent from negative suction in chemical industries.

CAPACITY [Q]       = upto 35 m3/hr
HEAD [H]               = upto 16 m
TEMPRATURE      = -20 C to 100 C
MOTOR RATING  = upto 3.3 Kw

NON-METALLIC PUMPS

PFA LINED, MONOBLOCK SERIES

PFA LINED PUMPS

Centrigugal Pumps lined with PFA (Per Floro Alkoxy) can be used up to 180 C and are highly resistant to extremely corrosive fluids.

CAPACITY [Q]       = upto 210 m3/hr
HEAD [H]               = upto 100 m
TEMPRATURE      = -20 OC to 180 OC
MOTOR RATING  = upto 60 Kw

PTFE PUMP.jpg

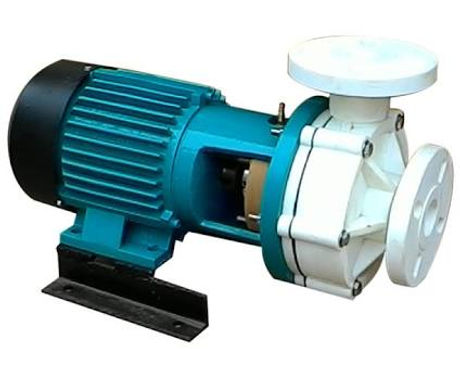

MONOBLOCK PUMPS

Monoblock series is direct drive motor for fast fluid transfer and continuous application.

CAPACITY [Q]       = upto 28m3/hr
HEAD [H]               = upto 28 m
TEMPRATURE      = -20 C to 80 C
MOTOR RATING  = upto 3.3 Kw

MONOBLOCK PUMPS.jpeg
METALLIC CENTRIFUGAL PUMPS.png

METALLIC CENTRIFUGAL PUMPS

COMPACT ( LC ) SERIES, MEDIUM ( SM ) SERIES, HEAVY DUTY ( MD ) SERIES, STR / MTR ( ITT GOULDS ) SERIES

AVIALBLE IN : CAST STEEL, SS-304, SS-316/316L, ALLOY-20, HASTELLOY, CD4MCu, NICKEL

CHEMICA PUMPS are known as the manufacturers of SS PUMPS, CS PUMPS, NICKEL PUMPS, ALLOY-20 PUMPS

LC SERIES.jpg

LC SERIES PUMPS

NEWLY DEVELPED MODELS WITH HIGHER EFFICIENCIES, LARGER FLOWS AND GREATER HEADS

Learn More

SM SERIES PUMPS

NEW MODELS ADDED WITH HIGHER EFFICIENCIES, LARGER FLOWS AND GREATER HEADS

Learn More
MD SERIES.jpg

MD SERIES PUMPS

PUMPS FOR HIGHER FLOWS, HEAVY DUTY OPERATIONS AND HIGHER PRESSURE NEEDS

Learn More

STR / MTR SERIES

ITT GOULDS DESIGN PUMPS
HIHGLY EFFECIENT AND POWREFUL FOR ROUGH & TOUGH USAGE

Learn More
STR PUMPS.jpg

METALLIC SELF-PRIMING, THERMIC FLUID & SANITARY PUMPS

STP, SPP, TCIP AND CIP SERIES

VERTICAL SELF PRIMING
STP SERIES PUMPS

VERTICAL SELF PRIMING PUMPS are also known as Vertical In-Line Pump with suction and discharge opposite to each other at 180 degrees.
The pumps are equipped with OPEN TYPE IMPELLER.

Learn More
STP SERIES.jpg

HORIZONTAL SELF PRIMING
SPP SERIES PUMPS

HORIZONTAL SELF PRIMING PUMPS (SPP SERIES) are designed to handle solvents and acids from underground tanks and negative suction conditions and to transfer to higher heads.

BROCHURE
SPP PUMP.jpg

THERMIC FLUID PUMPS
HOT OIL PUMPS

TCIP Series pumps specially designed to handle high temperature liquid  (350 C) transfer applications, such as : Boiler Feed Pump, Hot Oil Pumps, Thermic Fluid Pumps, Hot Food Slurry transfer in Food Industries etc.

THERMIC FLUID PUMP.jpg

CLOSE IMPELLER PUMPS

CIP Series pumps are metallic centrifugal pumps equipped with close impellers for higher efficiencies and larger flows.

Learn More
CLOSED IMPELLER PUMP.jpg

SANITARY PUMPS

CHEMICA PUMPS is the India's largest supplier of Sanitary Pumps for food grade material transfer applications.
SS-316/304 sheet metal with polished internal surface for use in food, dairy and pharma industry.

Learn More
